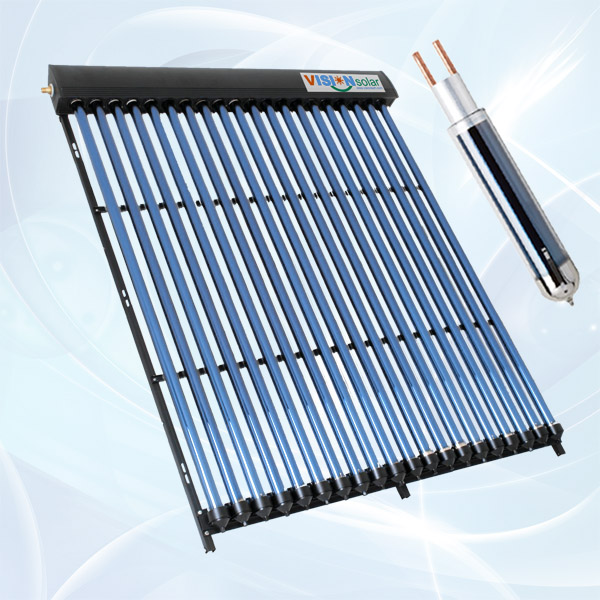

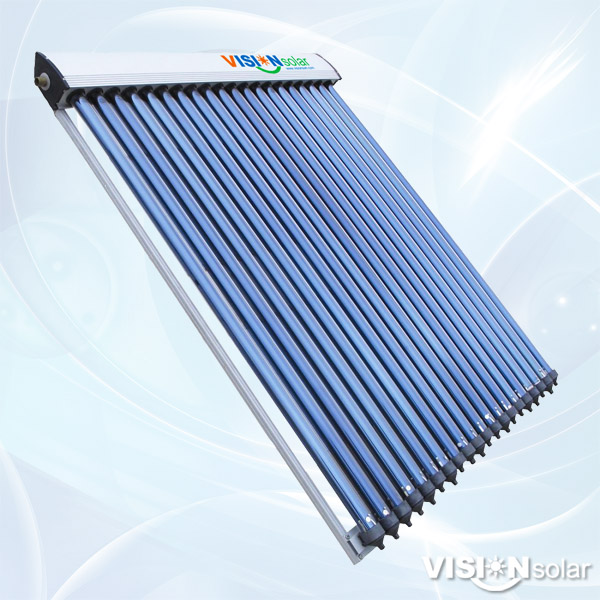

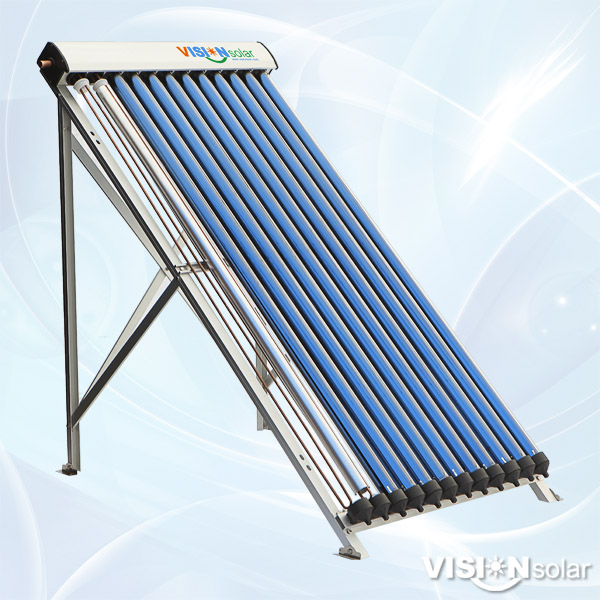

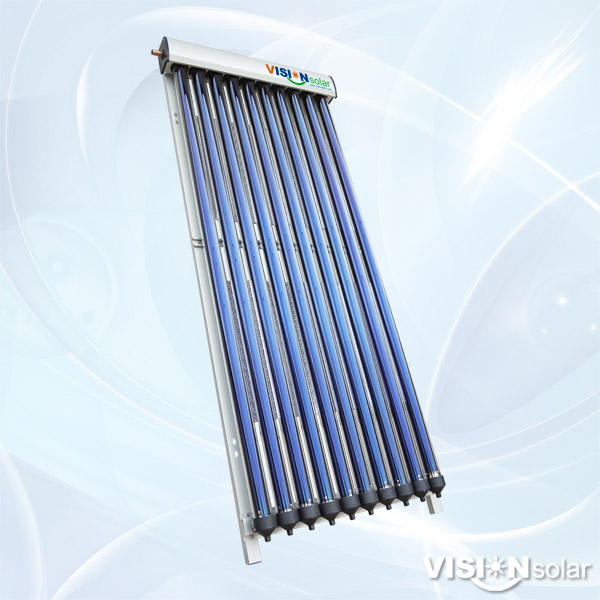

Pressurized U Pipe Solar Collector VUC-58

DESCRIPTION VISION VUC series high pressure U pipe solar collector is specially designed for active closed loop systems, with connection in series and parallel for domestic or commercial solar heating applications, supplying hot water, room

DESCRIPTION
VISION VUC series high pressure U pipe solar collector is specially designed for active closed loop systems, with connection in series and parallel for domestic or commercial solar heating applications, supplying hot water, room and floor heating for hotels, factories, hospitals, schools.
MAIN FEATURES
1. Most popular for high temperature solar water heating;
2. Super anti-freezing performance to work below -40°C;
3. Efficient indirect solar water heating with little heat loss;
4. High pressure working with safe and stable performance;
5. Wide applications for solar water, room and floor heating;
6. Strong adaptability to various roof structure installations;
7. No installation restrictions for the collector working angle
SPECIFICATION
Vacuum tube size: Φ58*1800MM
Tube quantity: 10; 15; 18; 20; 24; 30 Pcs
Vacuum tube: Three-target coating Cu/SS-ALN
U pipe: High-quality TU1 red copper pipe 8MM diameter
Manifold header: High-quality TP2 copper pipe 22MM diameter
Manifold insulation: High-density mould compressed rock wool
Manifold shell: Anodized aluminum alloy with silicon tube seal
Bracket: Shaped strong aluminum alloy for flat and slope roof
Inlet & outlet: 22MM compression or 1" male thread
Tilt angle: 0°; 25°; 38°; 45°; 90°
Hail Resistance: 25MM
Test pressure: 12 bar
Working pressure: 6 bar
Anti-freezing: - 40°C
Working life: 25 years
